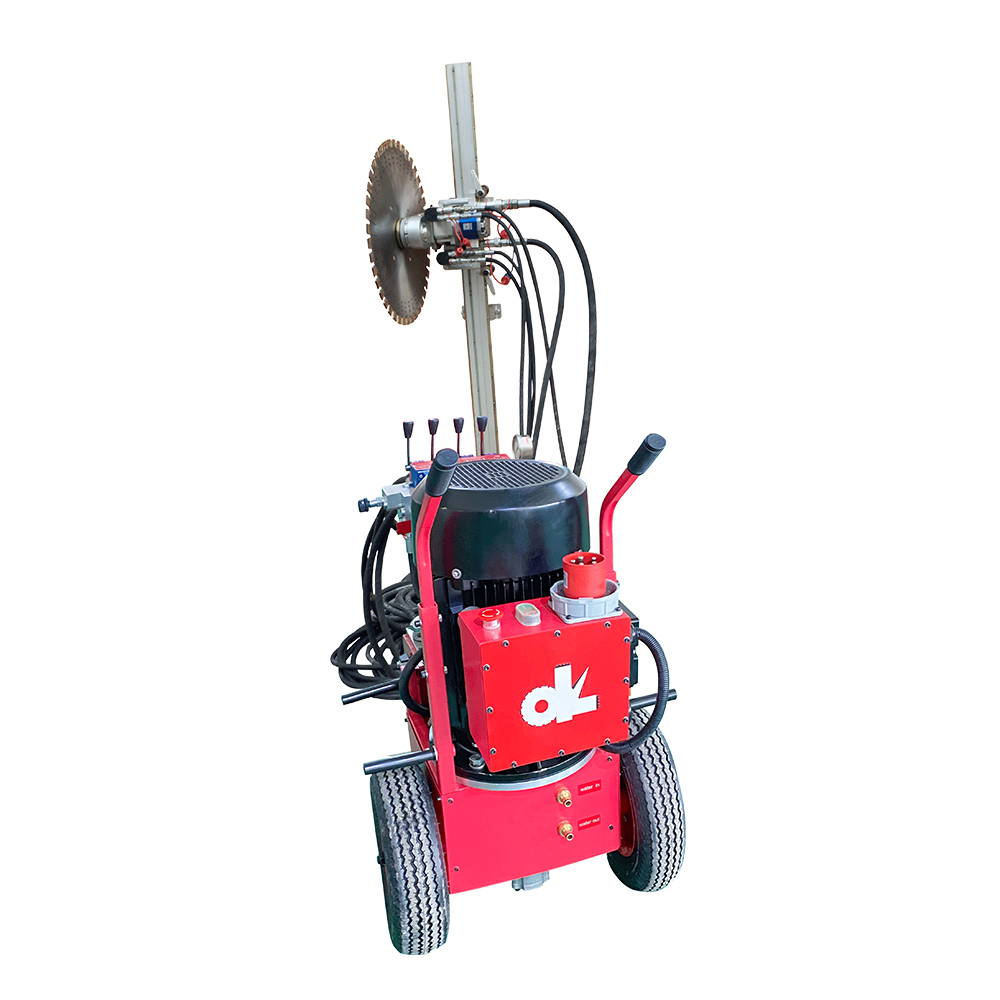

HWS-600TM  hydraulic wall saw

Ideal cutting speed using 3 stage adjustment.

Simple operation directly at the power pack with few hand movements.

Swivel arm,can be located by 360.

Techincal data

1.Specification

• Max start up blade diameter: 800mm
• Max using blade diameter: 1400mm
• Max cutting depth: 620mm

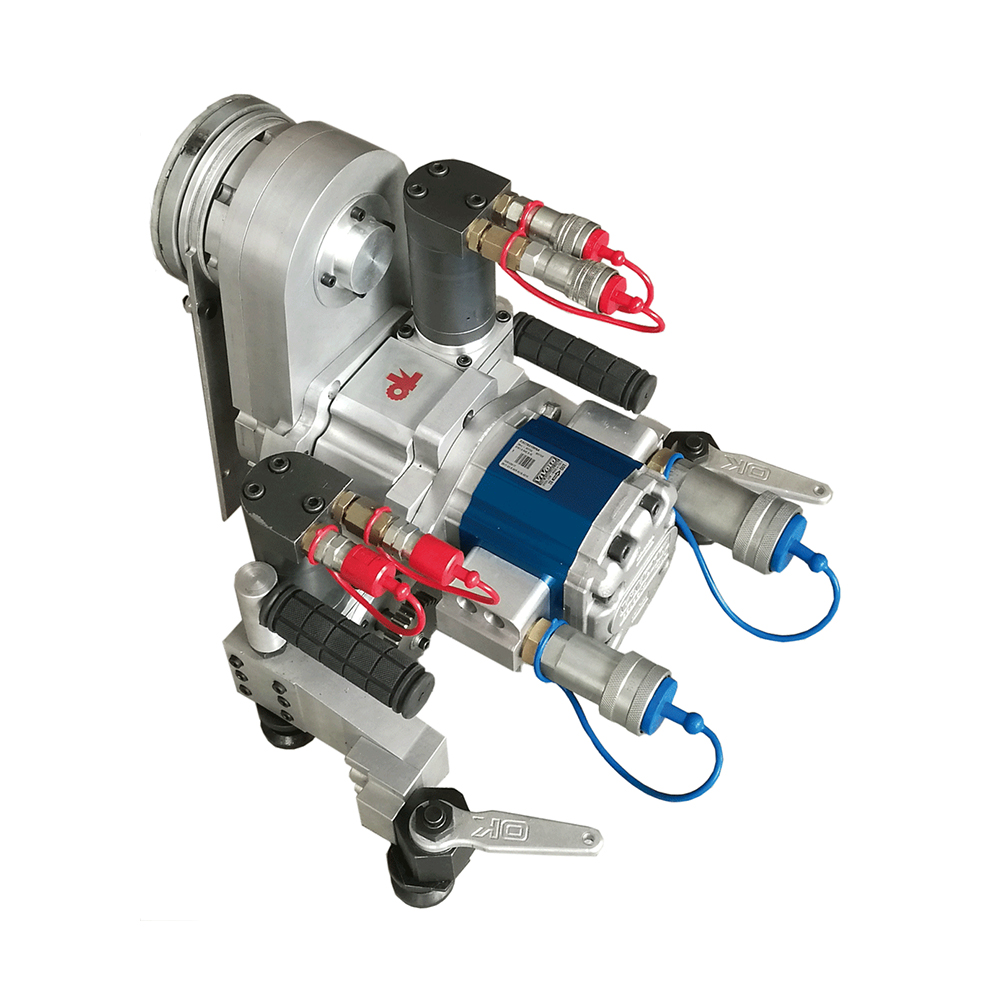

2.Sawing head

• Output axle diameter: 60mm
• Max working pressure: 200bar
• Blade cutting method: Automatic
• Speed of blade:500/900/1300rpm
• Weight: 38kg

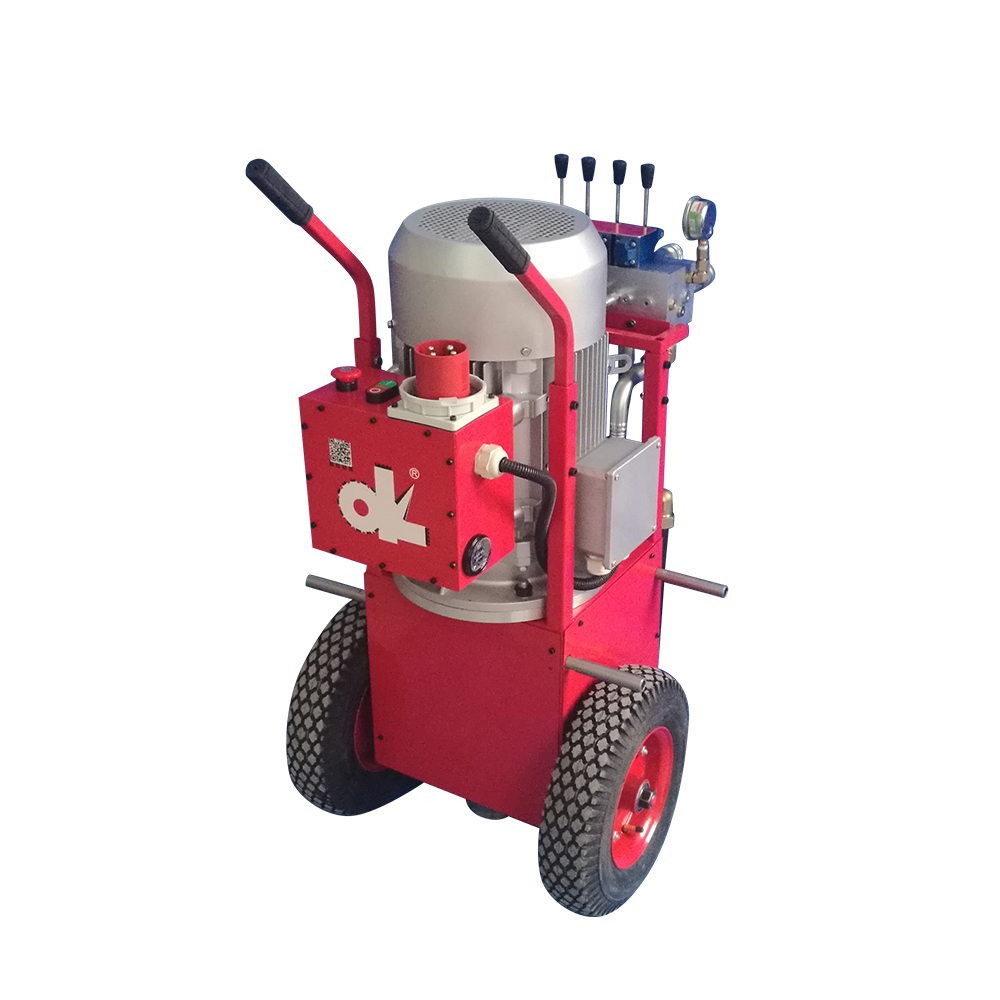

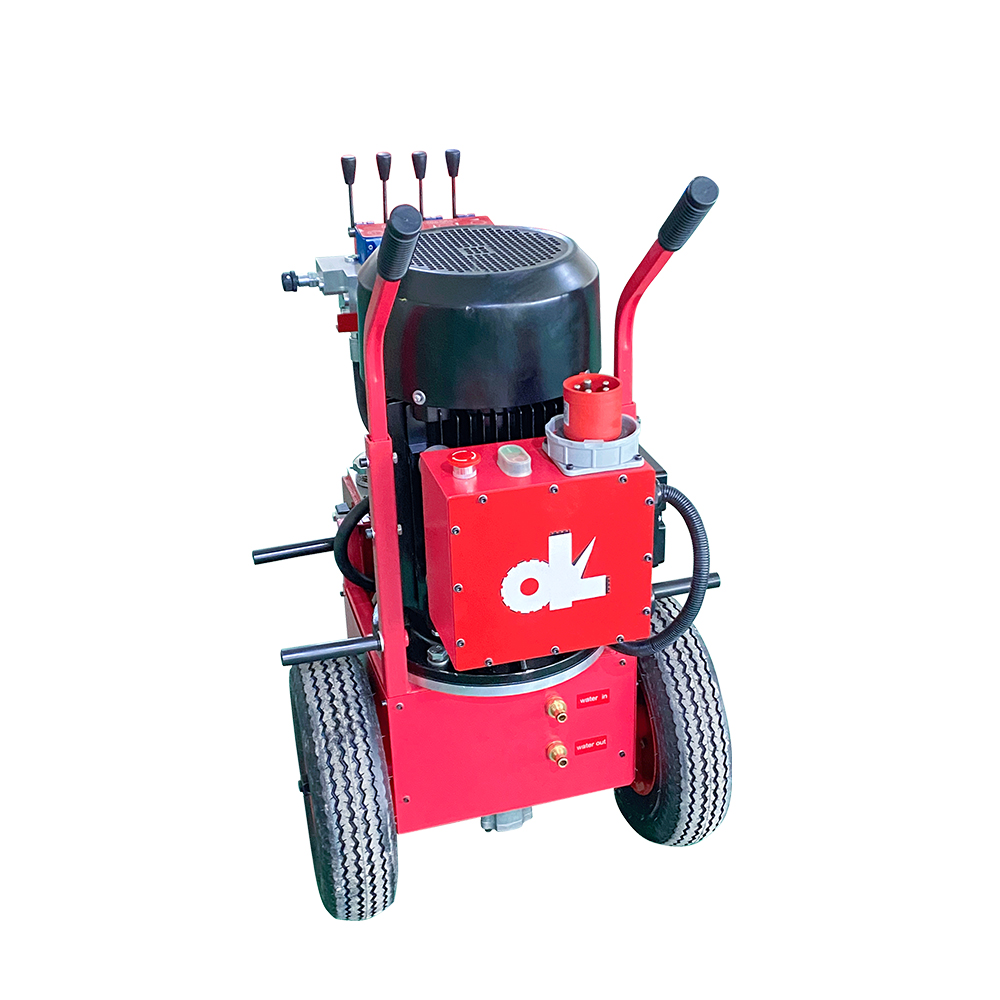

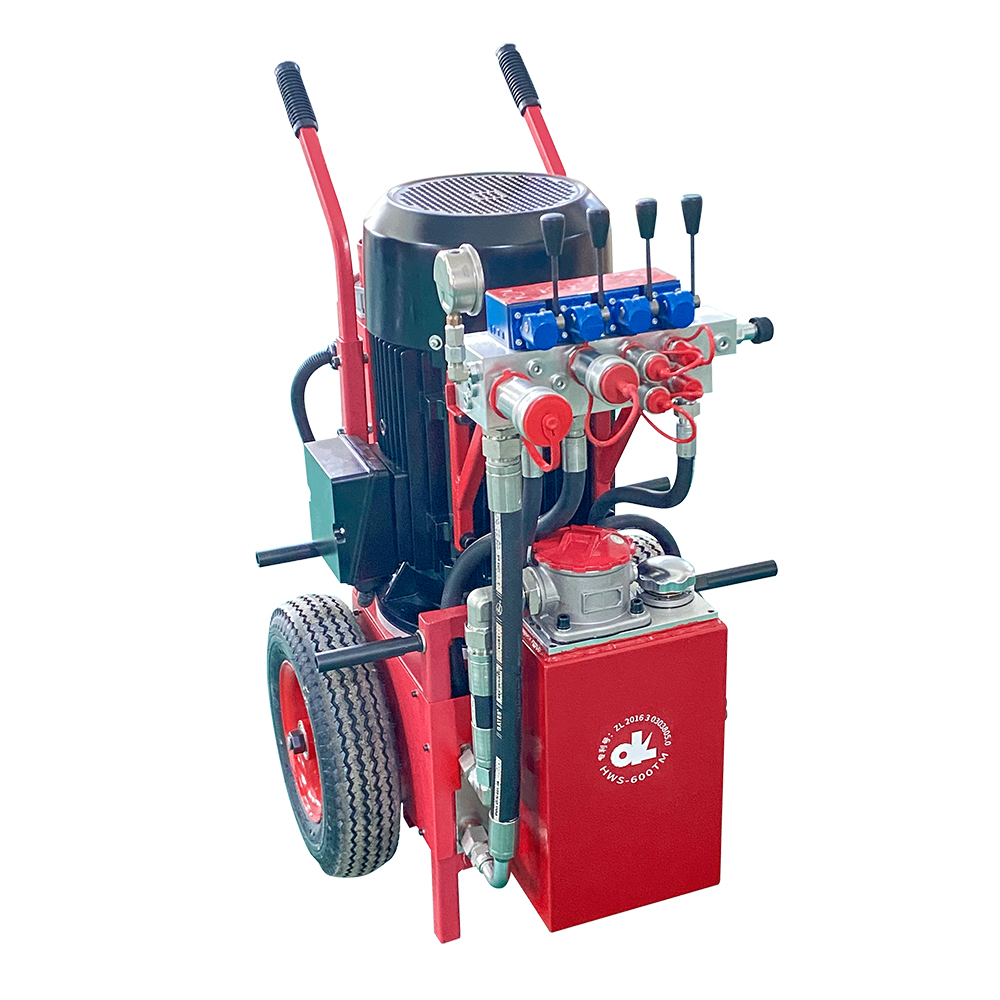

3.Hydraulic power pack( OK-600TM)

Input power: 25kw

Max fuel flow: 80L/min

Voltage: 380V/400V,3-phase ,50HZ

Control method: Hydraulic automatic

Weight (include Oil):220kg

Dimensions(L*B*H): 65*60*100 cm

Standard configuration:

• 1 sawing head 600TM
• 1 hydraulic power pack (ok-60TM)
• 1 hose set (6 hydraulic hoses)
• 1 rail 2 m
• 1 rail 1 m
• 4 mounting brackets for rail
• 2 stopper for rail´s end
• 1 blade guard
• 1 tool box
• 1 blade 800mm
