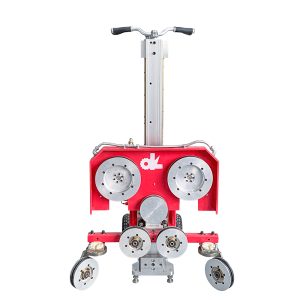

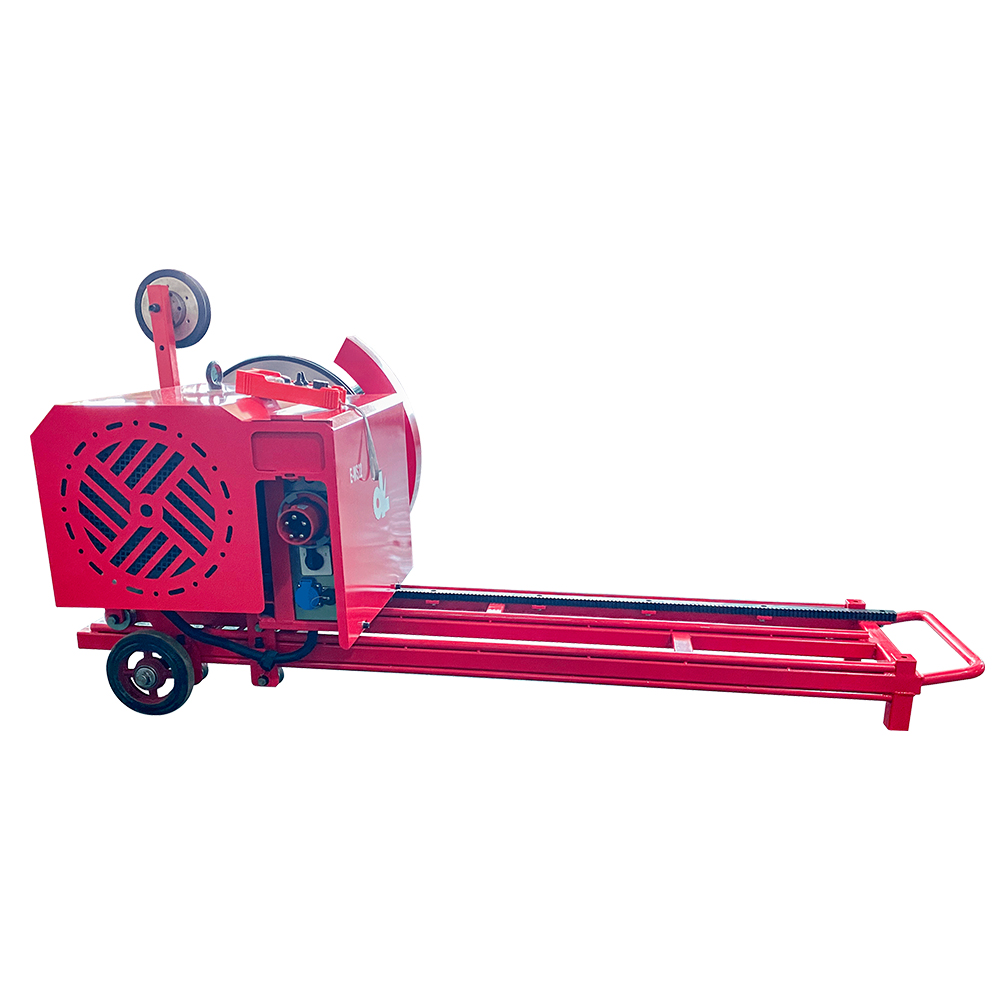

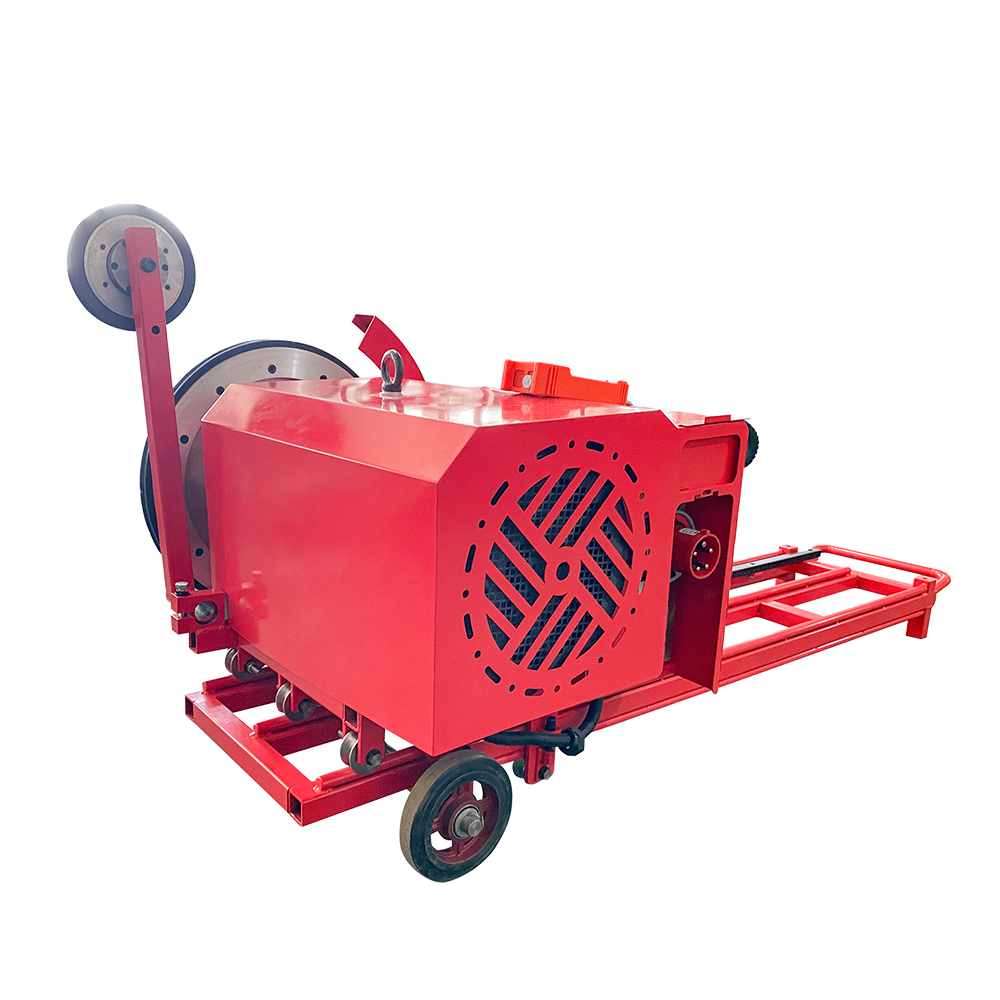

Electric Wire Saw

model:E-WS22

The E-WS22 electric wire saw with remote control is designed for cutting reinforced concrete structures using a diamond rope. The machine has a wide range of applications in dismantling, construction and mining. The simple design of the E-WS22 wire saw allows you to quickly prepare the machine for work. With the help of additional racks with rollers, you can change the direction of the diamond rope without changing the position of the machine itself.

Features:
Easy to install, easy to move, fast cutting speed
Low cost and easy maintenance
Use flexible, horizontal cutting and vertical cutting

Technical Data

• Voltage：380V/50Hz ( other voltage can be customized)
• Power：22kW
• Large Flywheel Diameter：500mm
• Travel Motor Power：400W
• Max.stroke：1300mm
• Weight：350kg
• Dimensions：2100*750*800mm
