Crawler electric wire saw

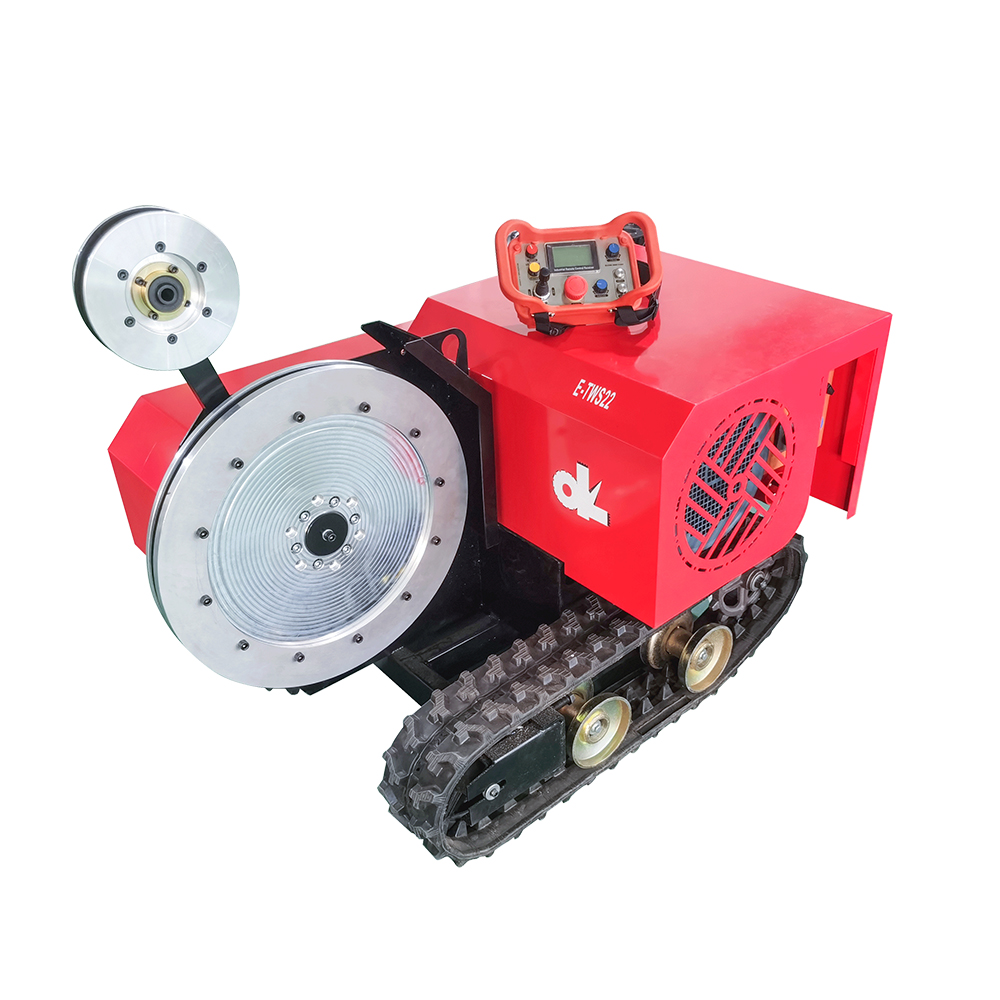

Model:E-TWS22
Technical Data
- Main Motor : 22kW/42A
- Rated Voltage : 380V/50Hz(Others can be customized)
- Torque : 230N.m
- Control Mode : Wireless Remote Control
- Walking Motor : Double Motor Drive/1.5kW
- Rotation Speed : 1000r/min
- Diameter of Driving Wheel : 550mm
- Diameter of Guiding Wheel : 200mm
- Dimension : 1200*700*950mm
- Weight : 450kg

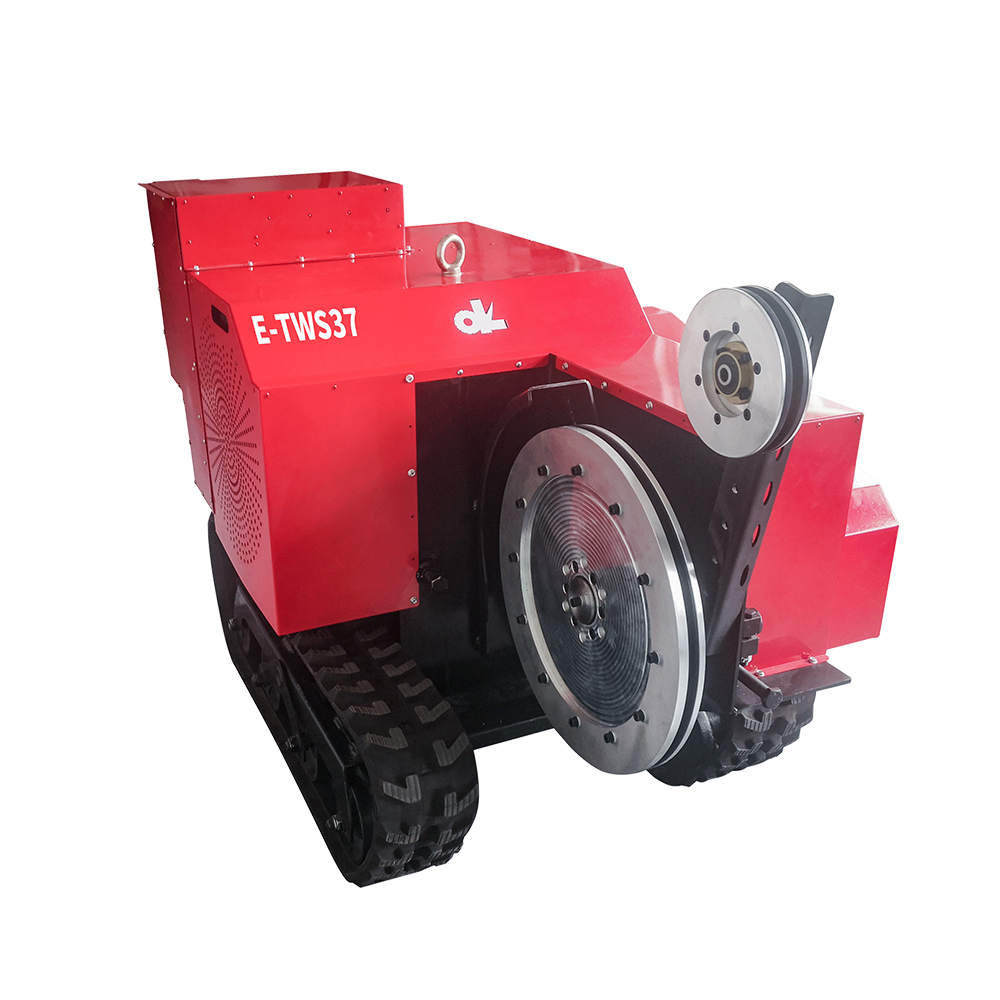

Model:E-TWS37
Technical Data
- Main Motor : 37kW/71A/Soft Start
- Rated Voltage : 380V/50Hz(Others can be customized)
- Torque : 360N.m
- Control Mode : Wireless Remote Control
- Walking Motor : Double Motor Drive/3kW
- Rotation Speed : 980r/min(The speed can be adjusted)
- Diameter of Driving Wheel : 550mm
- Diameter of Guiding Wheel : 200mm
- Dimension : 1300*950*1100mm
- Weight : 820kg
